West Heat Recovery Boilers & Steam Generation



We Manufacturing a Wide Varity of West Heat Recovery Boilers With Different Types of Construction and Higher Steam Generation.
Wide Range : 500 kg/Hr to 10 tons/Hr.
Working Pressure: UP to 21 kg/cm2.

Description

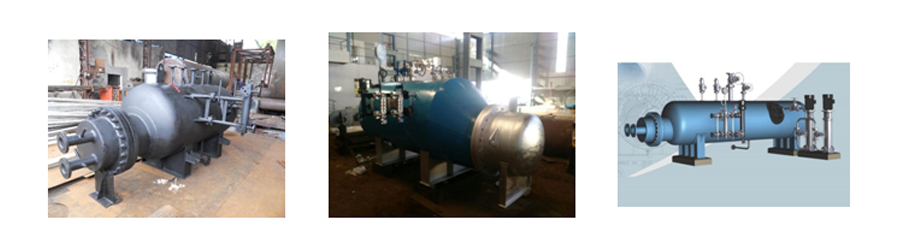

Horizontal Type West Heat Recovery Boiler (Kettle).

Kettle reboilers are very simple and reliable. They may require pumping of the column bottoms liquid into the kettle, or there may be sufficient liquid head to deliver the liquid into the reboiler. In this reboiler type, steam flows through the tube bundle and exits as condensate. The liquid from the bottom of the tower, commonly called the bottoms, flows through the shell side. There is a retaining wall or overflow weir separating the tube bundle from the reboiler section where the residual reboiled liquid (called the bottoms product) is withdrawn, so that the tube bundle is kept covered with liquid and reduce the amount of low-boiling compounds in the bottoms product.
