Thermic Fluid Heaters



We Offer Modern Range Of Thermic Fluid Heater, With Different Firing Options.
Wide Range : 1,00,000 to 50,00,000 Kcal/Hr.
Fuel : Solid Fuel, LDO, FO, LSHS, Agrowaste Etc.

Description

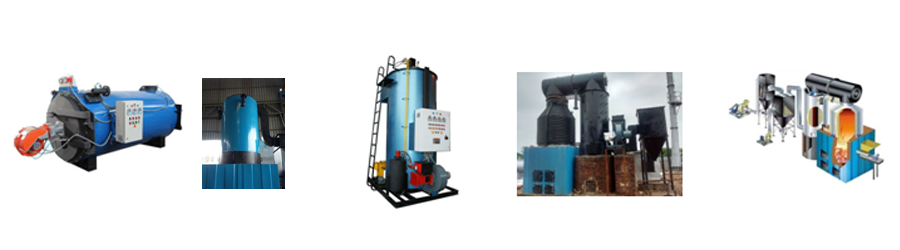

Horizontal Type Oil/Gas Fired Thermic Fluid Heaters.

High performance elevated temperature Hot Oil Heaters for- process heating applications at !ow operating pressure. Designed with field- proven safety features, these heaters provide round the clock, trouble-free process heating in a wide variety of industrial application.
At high "temperature, water and steam requires a corresponding high operating pressure. Establishing this with water and steam can be very difficult and expensive.
In thermic fluid heaters a thermal oil is wed instead as the heat carrier operating at low pressure to deliver 300°C temperature. In comparison water and steam, would require a pressure of 85 bar to obtain this temperature.
The SU-Series thermic fluid heaters are thermodynamically optimized and are characterized by high efficiency & excellent heat transfer to the thermic fluid. The combustion chambers are generously dimensioned & are sufficiently long. The flame can thus burn fully & the emission values remain very low for ail fuel types.


Salient Features of the SU Series - Oil/Gas Fired Thermic Fluid Heaters are

  • Large heating surface area hence higher efficiency
  • Hinged front door for easy cleaning and inspection
  • Rugged construction
  • Maximum running reliability

Advantages of using Thermic Fluid Heaters Over Steam Boilers
  • High temperature up to 300°C at low pressure of I to 3 bar
  • No equipment for pre-treatment of boiler feed wafer
  • No heat loss due to hot condensate and flash steam discharge
  • No risk of corrosion
  • Low maintenance costs
  • Easy to operate (does not require a steam boiler certified operator)

Vertical Type Oil/Gas Fired Thermic Fluid Heaters.

SU series heaters are compact, vertical, factory-assembled fired equipment for high temp, closed loop thermal oil process heat applications. Synthetic or mineral based thermal oils having stable properties over a wide temp range of 10 to 300°C are used as heating medium at comparatively [ow operating pressure of 3-4 kg/ cm.
SU series TF Heaters are fitted with indigenous pre-heated air burners in three-pass combustion system to improve thermal efficiency. These heaters are fitted with standardized components and are quite simple to operate and maintain. A large number of options, such as choice of fuel, addition of standby TF pump, sizing of de-aerator tank are available to users to meet their process needs.

4 Pass Solid Fuel Fired Thermic Fluid Heaters.

Larger, more efficient 4-pass designs are manufactured in capacity range of 400,000 to 4,000,000 kcal/hr, in which the heat exchanger is split in two vertical sections; the radiant section installed above the furnace & the convection section installed next to it and connected with a refractory lined flue duct. Although, this design takes up a large floor space, it is more efficient and well planned for thermal expansion.
The vertical design with integral furnace assures rated output on any sold fuel like coal, wood & bagasse. The well-planned design of the SU-Series ensures thermal expansion with low stress.


Salient Features of the SU Series - 4 Pass Solid Fuel Fired Thermic Fluid Heaters are
  • Low operating cost
  • Reliable operation
  • Safety against low thermic fluid flow
  • Precise thermic fluid temperature control

Applications

  • Agro Industries
  • Chemical & Petrochemical Industry
  • Food & Beverages
  • Laundry & Dry Cleaning
  • Textile
  • Concrete Blocks Curing
  • Dairy
  • Drugs & Pharmaceuticals
  • Batteries
  • Coir
  • Engineering
  • Educational Institutes
  • Electric Cables
  • Hotels, Hospitals
  • Leather
  • Paper/ Packaging/ Plywood/ Thermocole
  • Research & Development
  • Tea/ Tobacco/ Timber/ Wood/ Toys/ Wool/ Silk
